EZ Claw Flange Mount Short 3-in-1 Wrapped and Hydraulic Line Saver Kit
SKU: EZC10054S
EZ Claw Flange Mount Short 3-in-1 Wrapped and Hydraulic Line Saver Kit
SKU: EZC10054S
Description

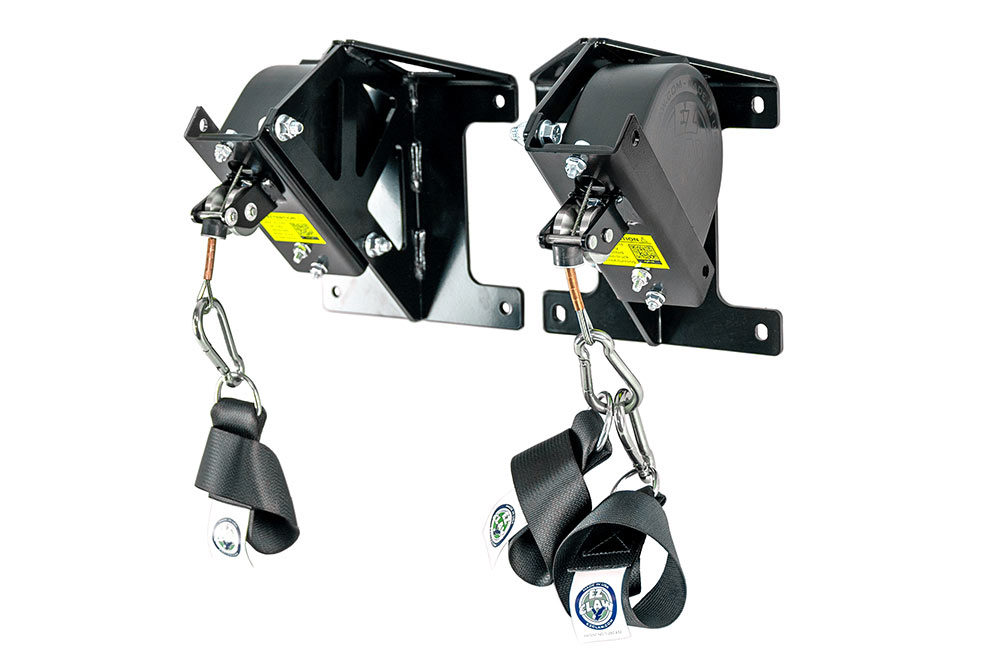

This Flange Mount Short Kit is designed for use with 3-in-1 air and electric lines and two hydraulic lines. This setup is commonly used for headache rack installation. The Flange Mount Short Bracket provides 8" of clearance, keeping hoses from rubbing on the headache rack. The Flange Mount bracket is laser-cut and robotically-welded for long-lasting durability and strength. The zinc-plated, powder-coated finish resists rust and ensures longevity. Hoses not included.
This shorter bracket accommodates tractors with shorter wheelbases or tractors pulling refrigerated trailers.
This shorter bracket accommodates tractors with shorter wheelbases or tractors pulling refrigerated trailers.
Specs
- (1) 25 lb. tensioner and (1) sling for 3-in-1 lines
- (1) 40 lb. tensioner and (2) slings for dual hydraulic lines

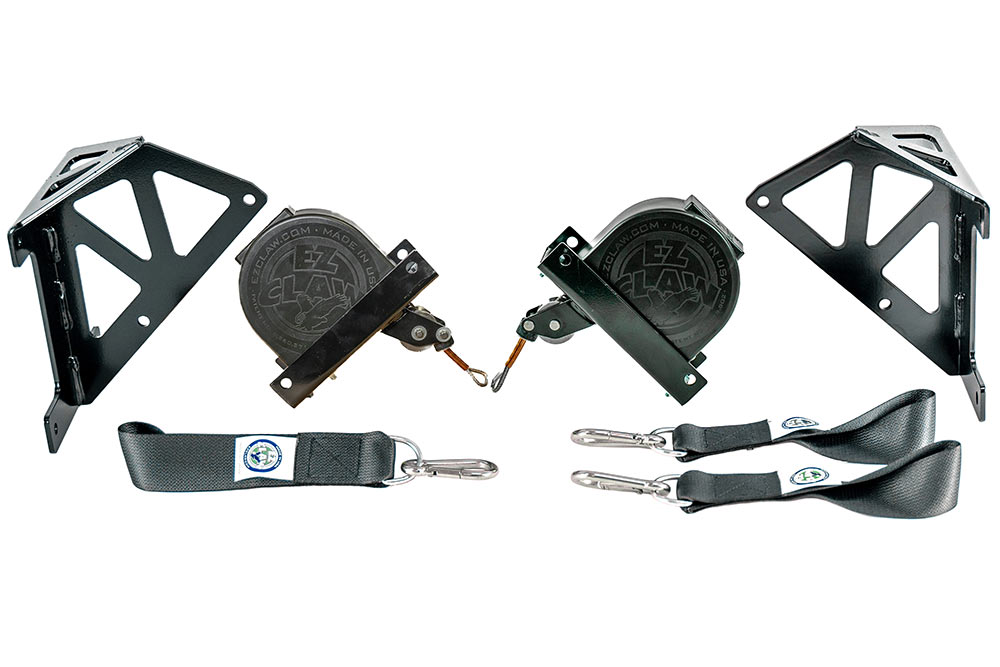

- (2) Flange Mount Short Brackets
- Kit installs approximately 6' above the catwalk and keeps lines at least 6" off the frame and catwalk
- Provides 8" of clearance off of the back of the headache rack
- Mounting hardware included
Installation instructions
